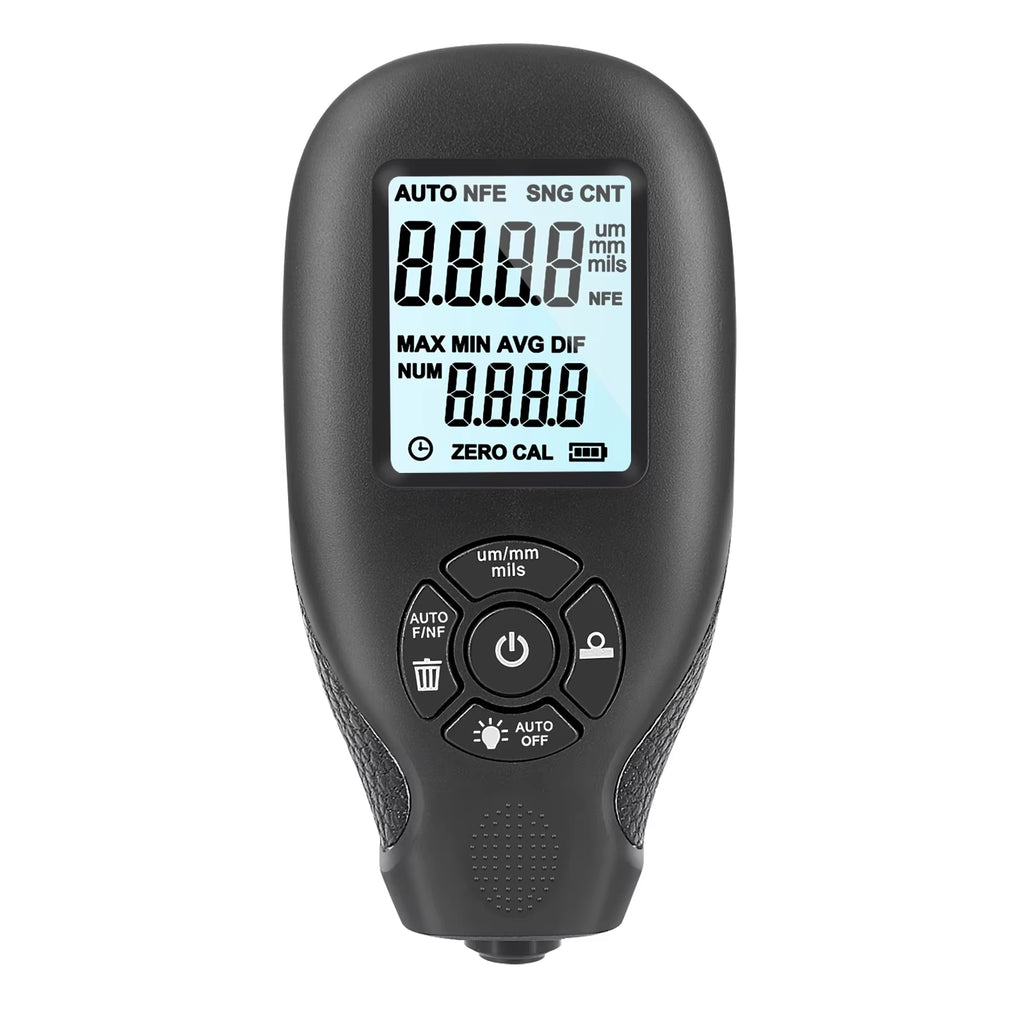

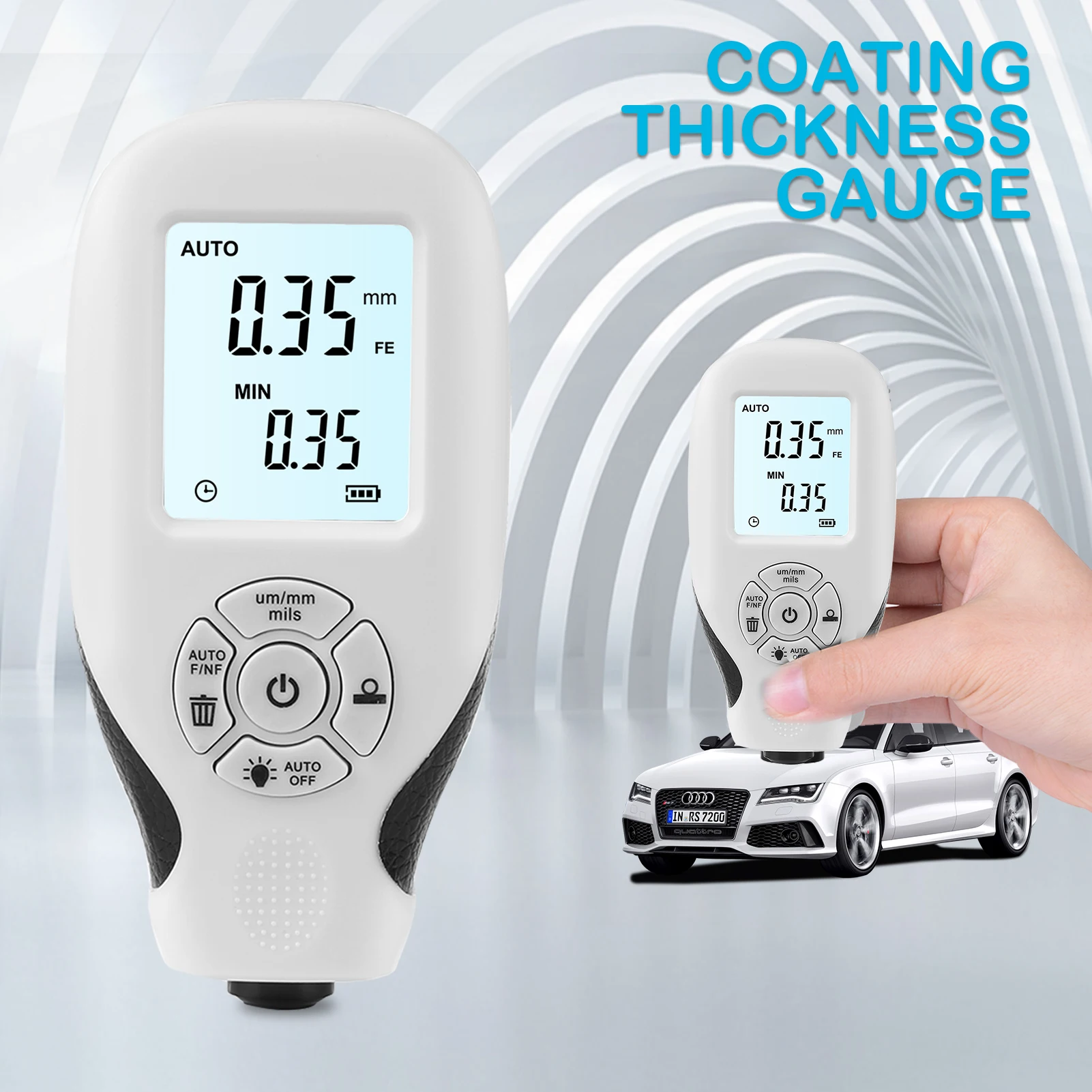

HW-300 Car Paint Thickness Gauge 0-2000UM Fe & Nfe Film Coating Automatic Thickness Tester Manual Auto Paint Tools
HW-300 Car Paint Thickness Gauge 0-2000UM Fe & NFe Film Coating Automatic Thickness Tester Manual Auto Paint Tools

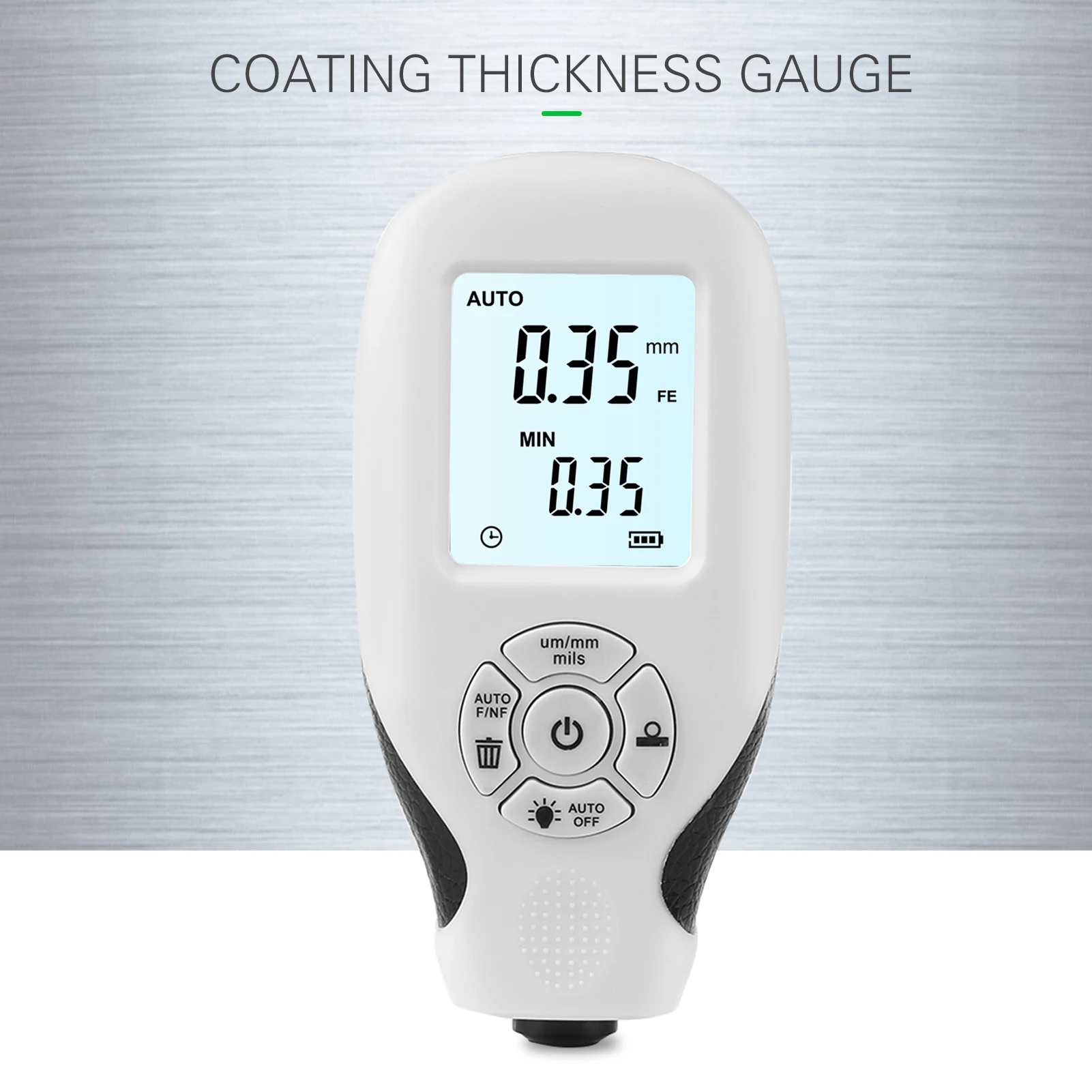

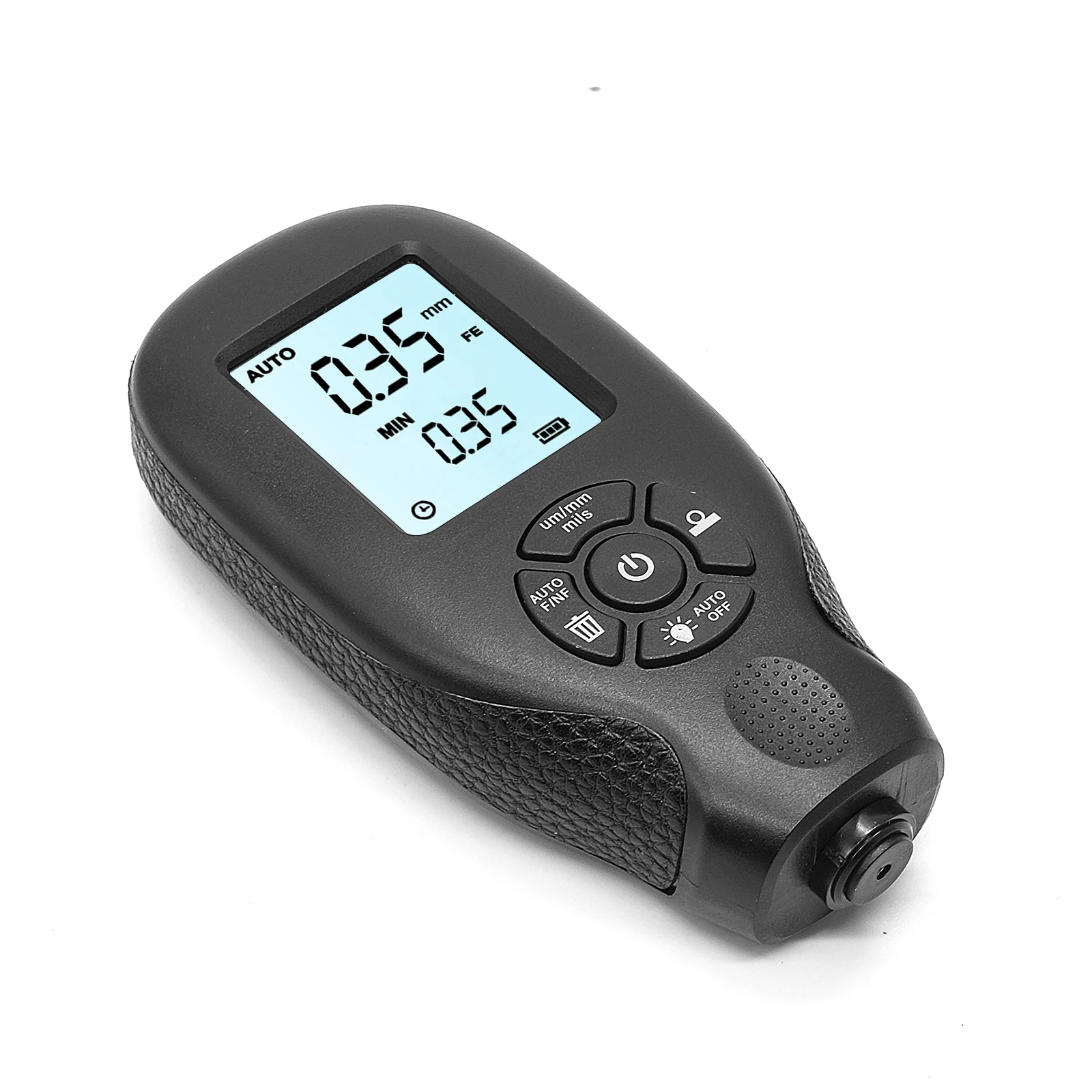

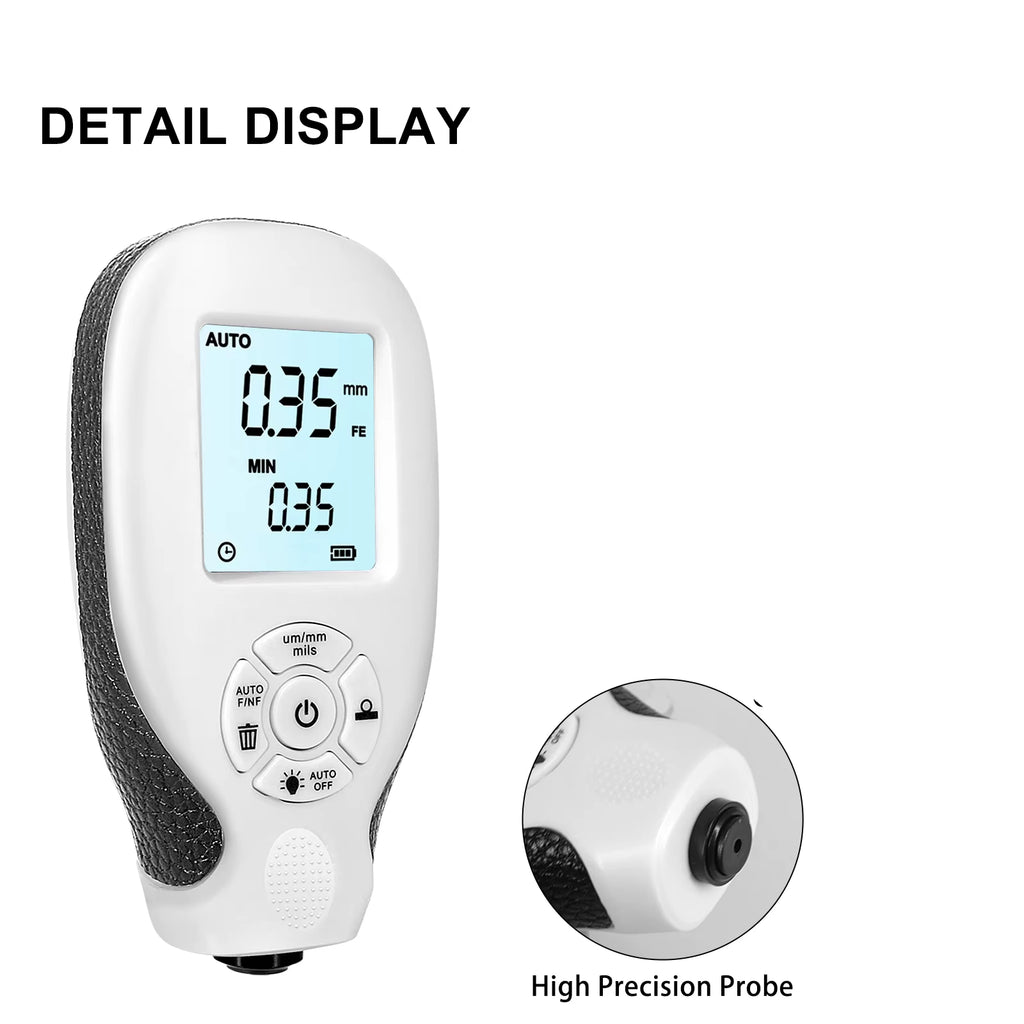

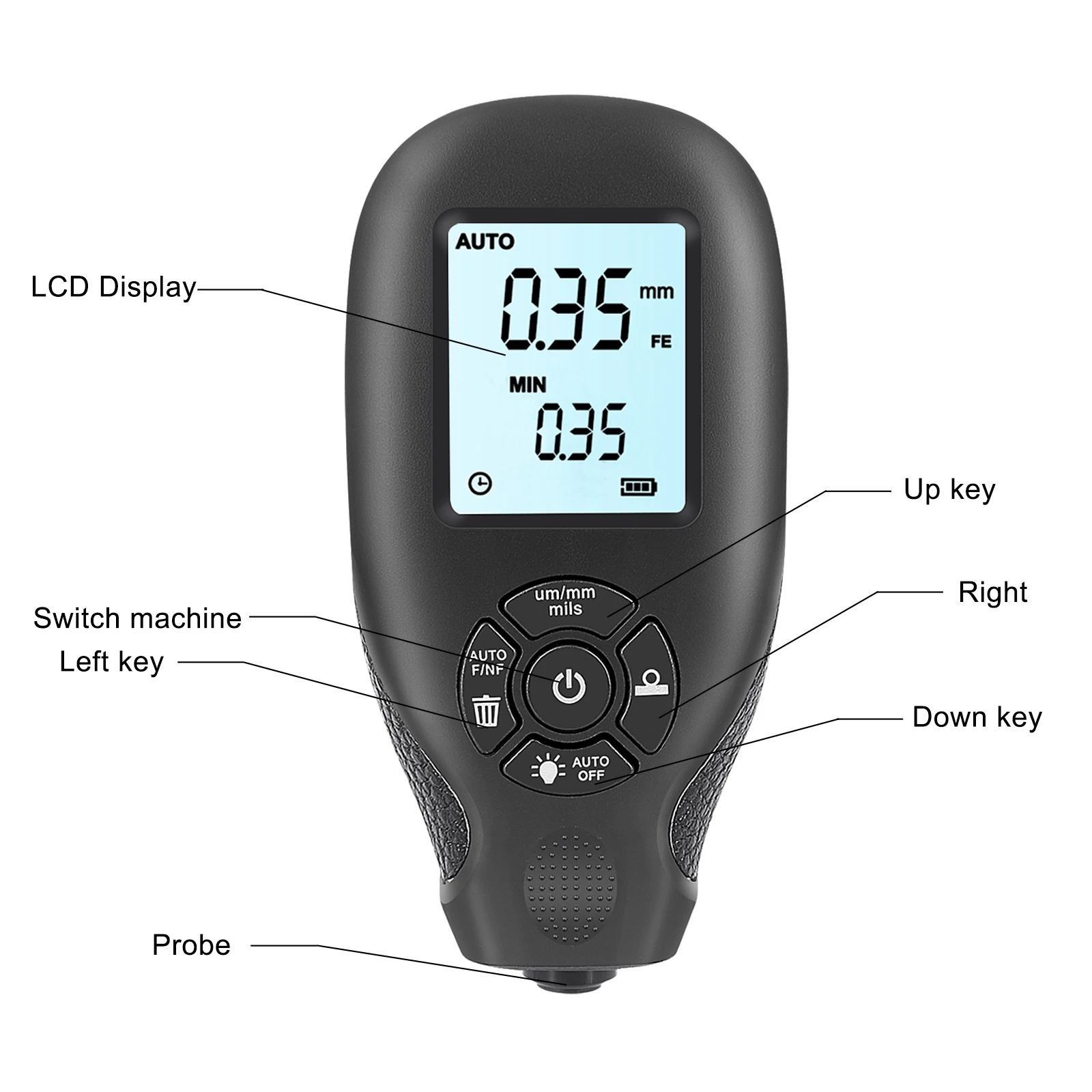

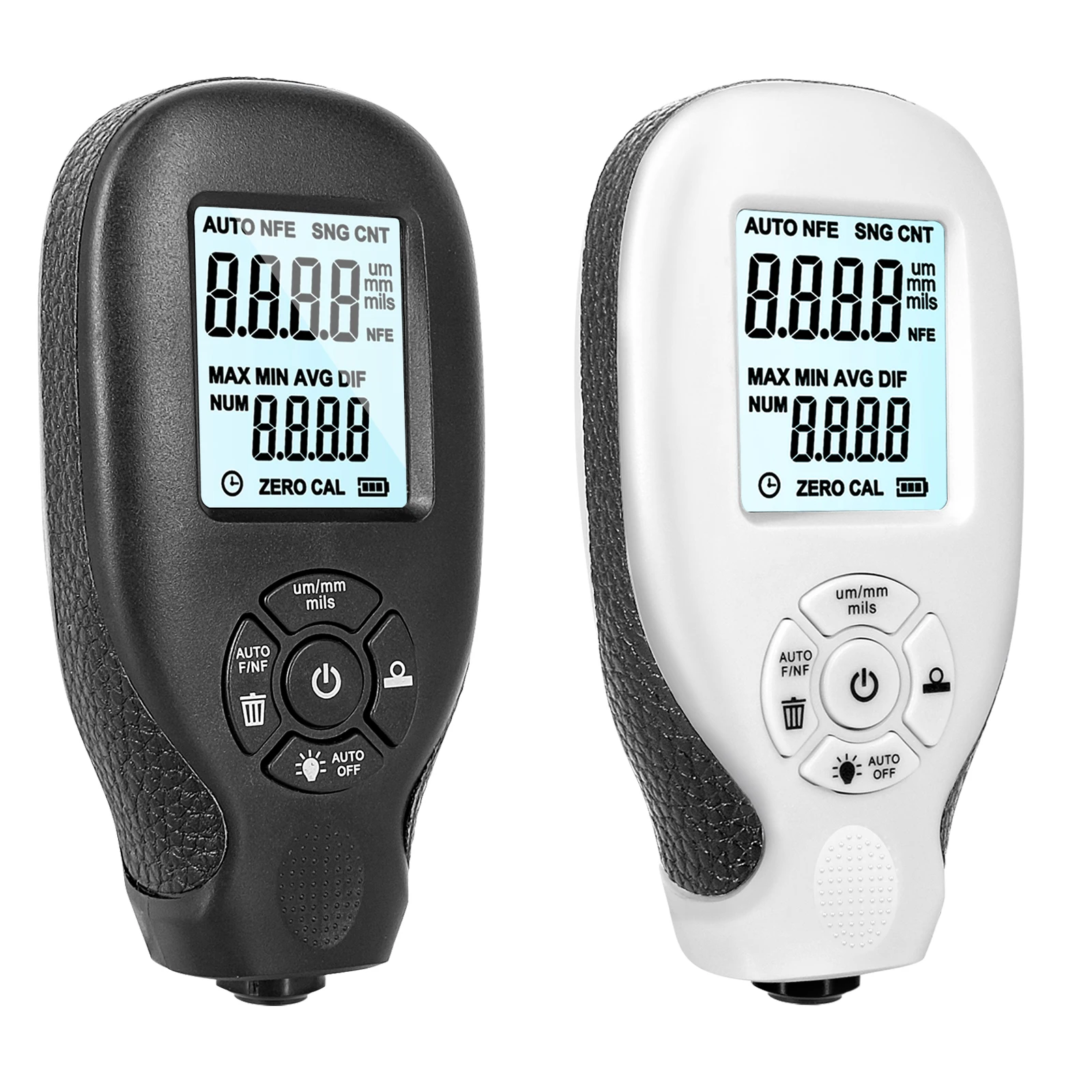

HW300
Specification:
Product name: HW-300 coating thickness gauge

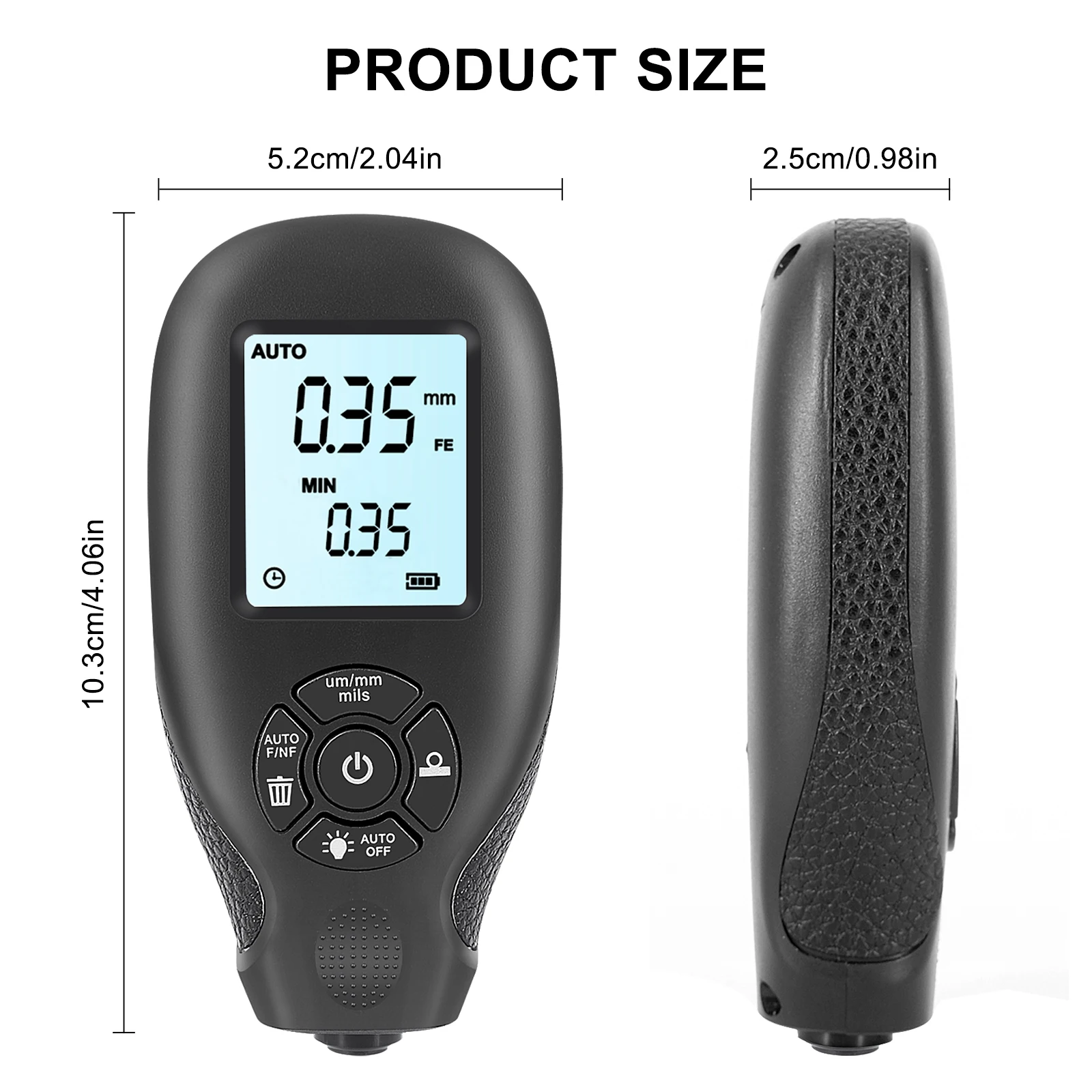

Product size: 110MM*52MM*25MM
Material: ABS

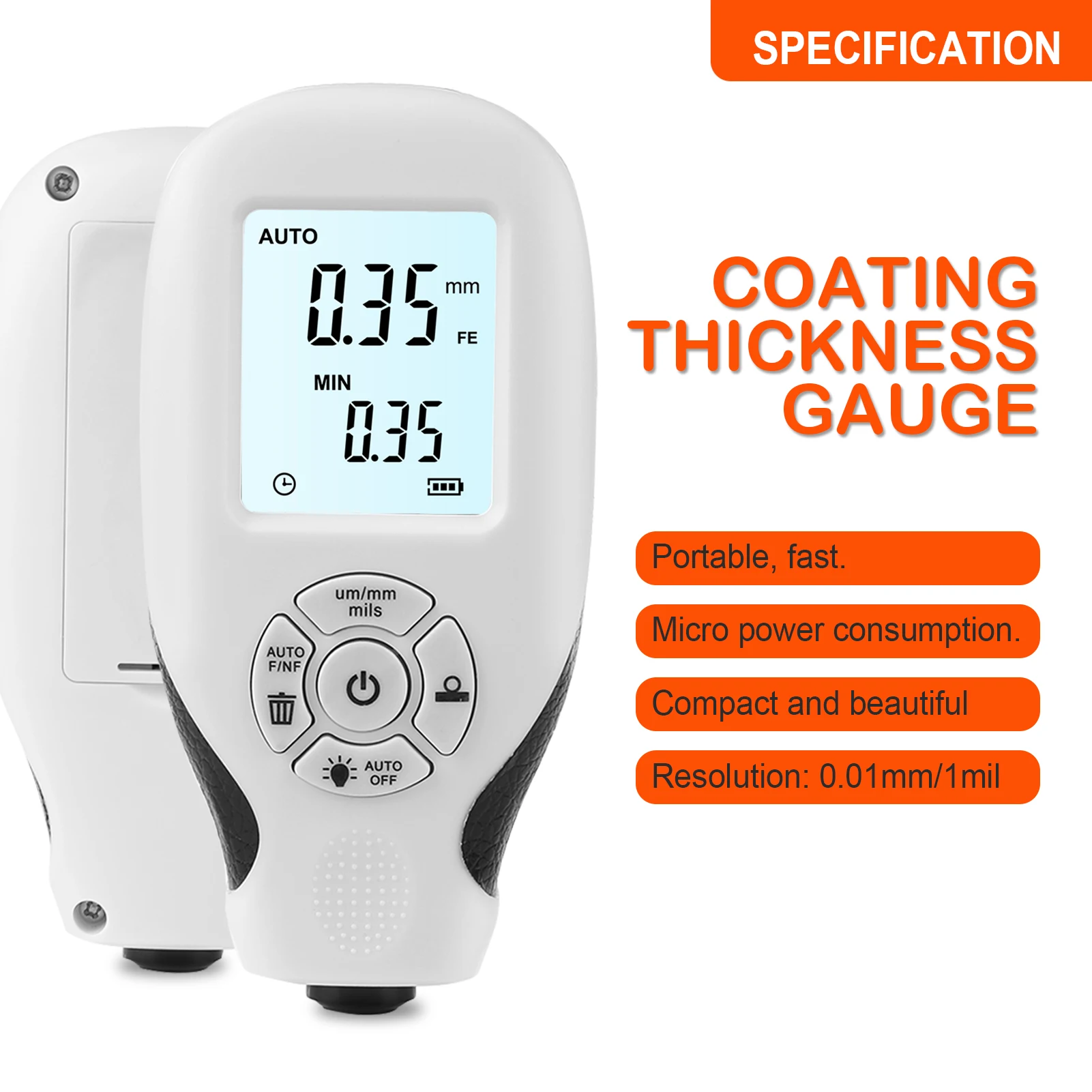

Resolution: 0.01mm/1mil
Measuring range: 0-2000UM
Measurement accuracy: ±(3%+1UM)

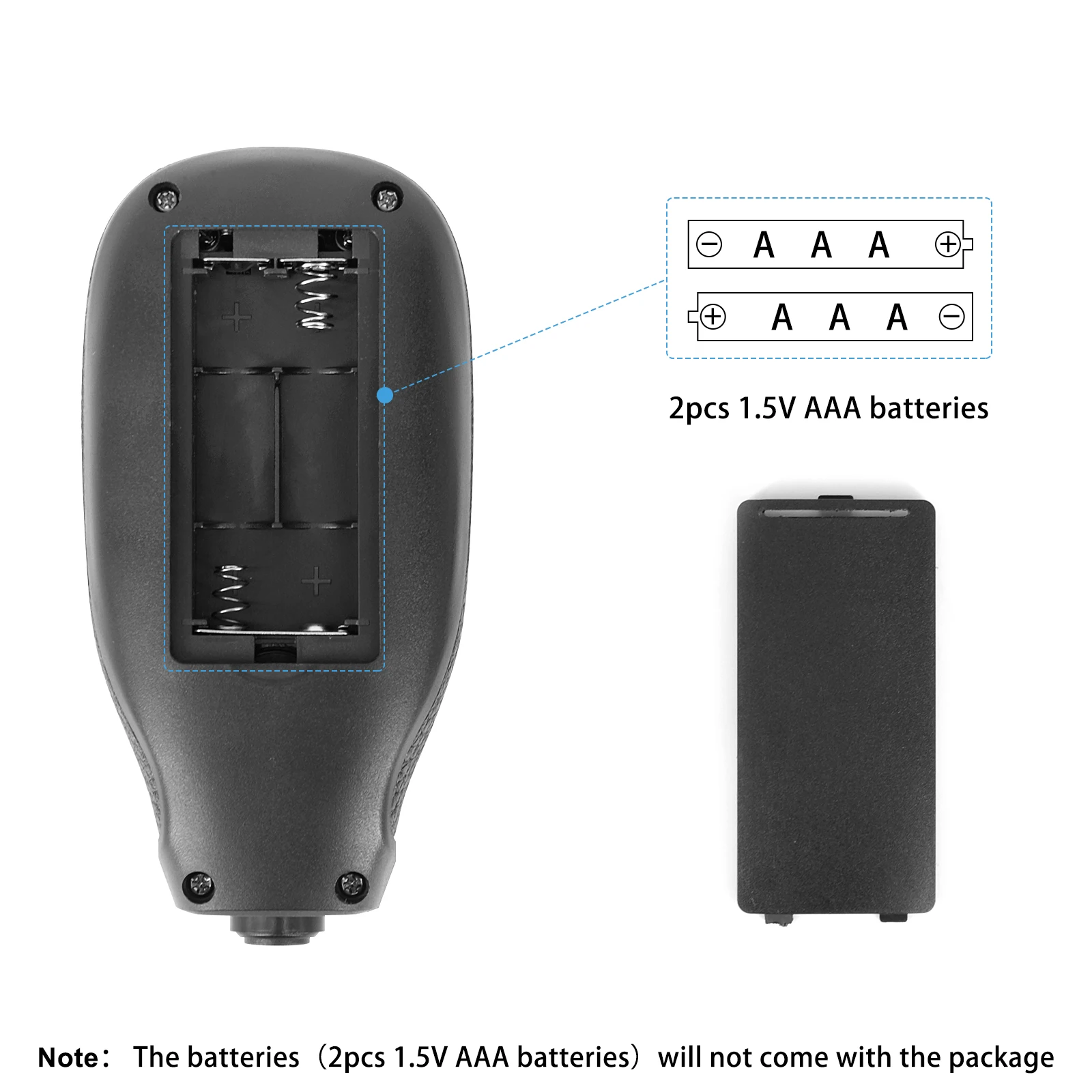

Power supply: 2 1.5V AAA batteries (not included)
Operating temperature: -10 degrees Celsius 50 degrees Celsius
Accessories: Thickness gauge 1PCS + manual + calibration sheet, white box packaging

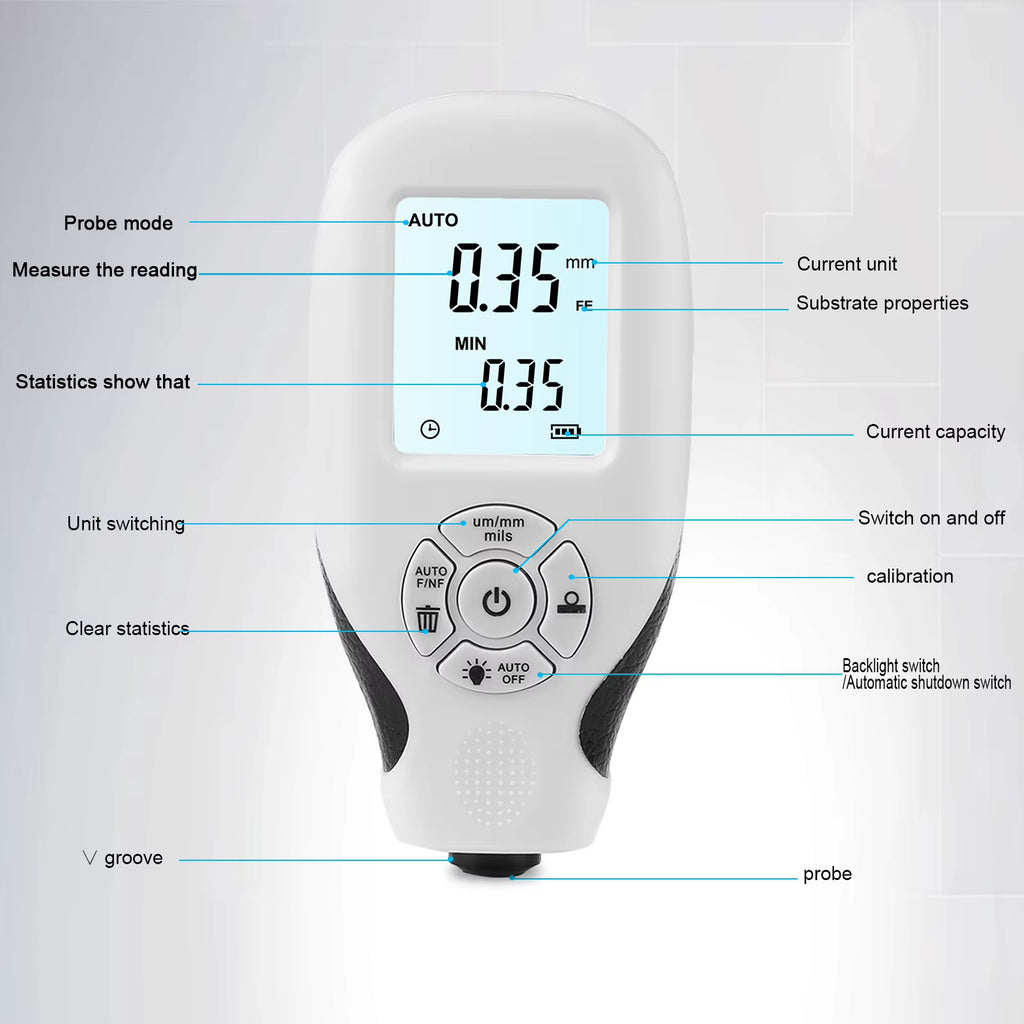

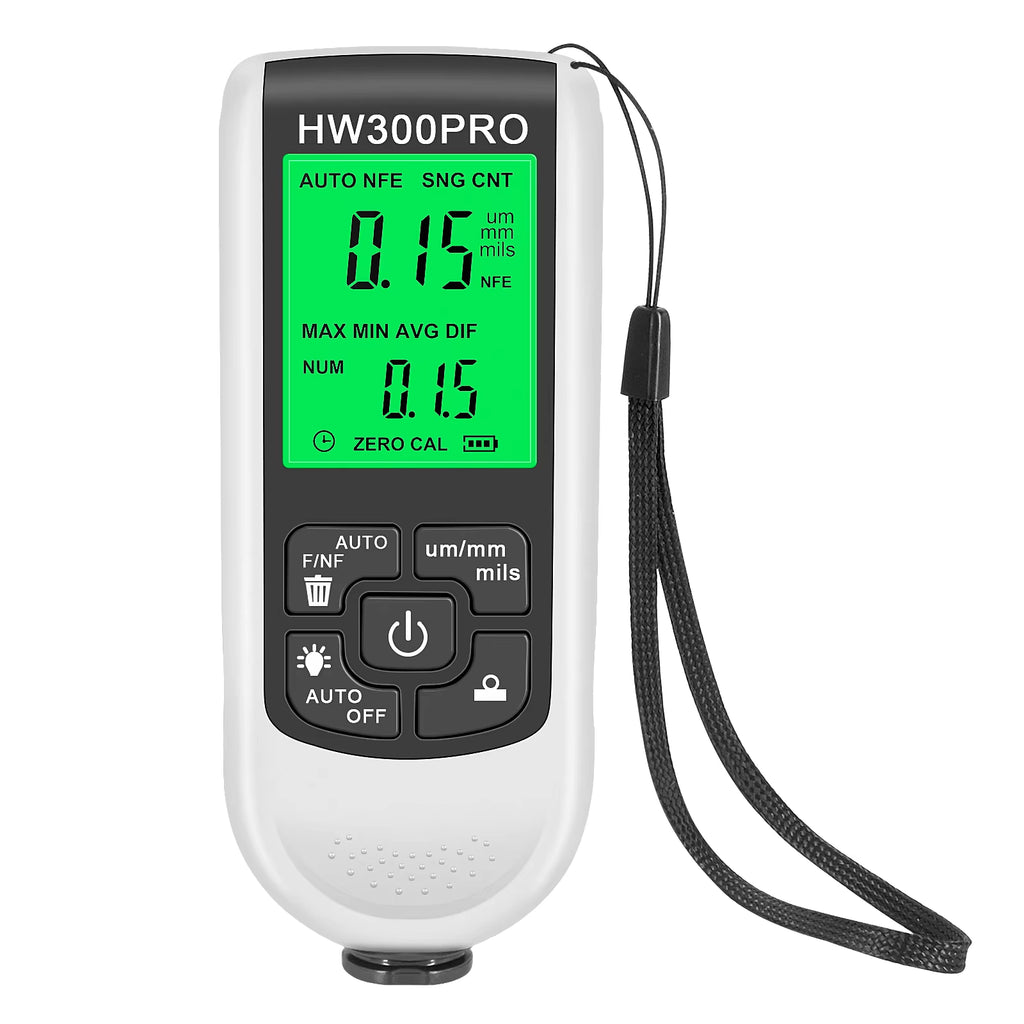

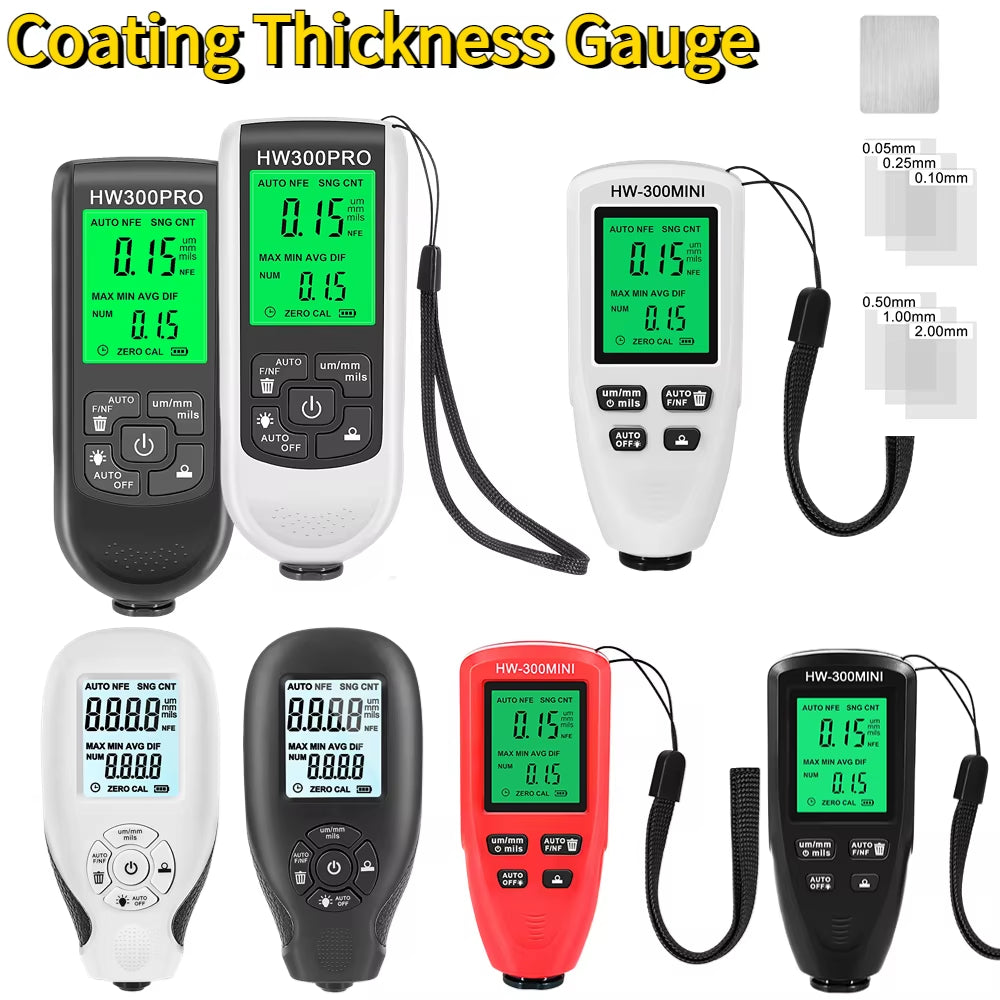

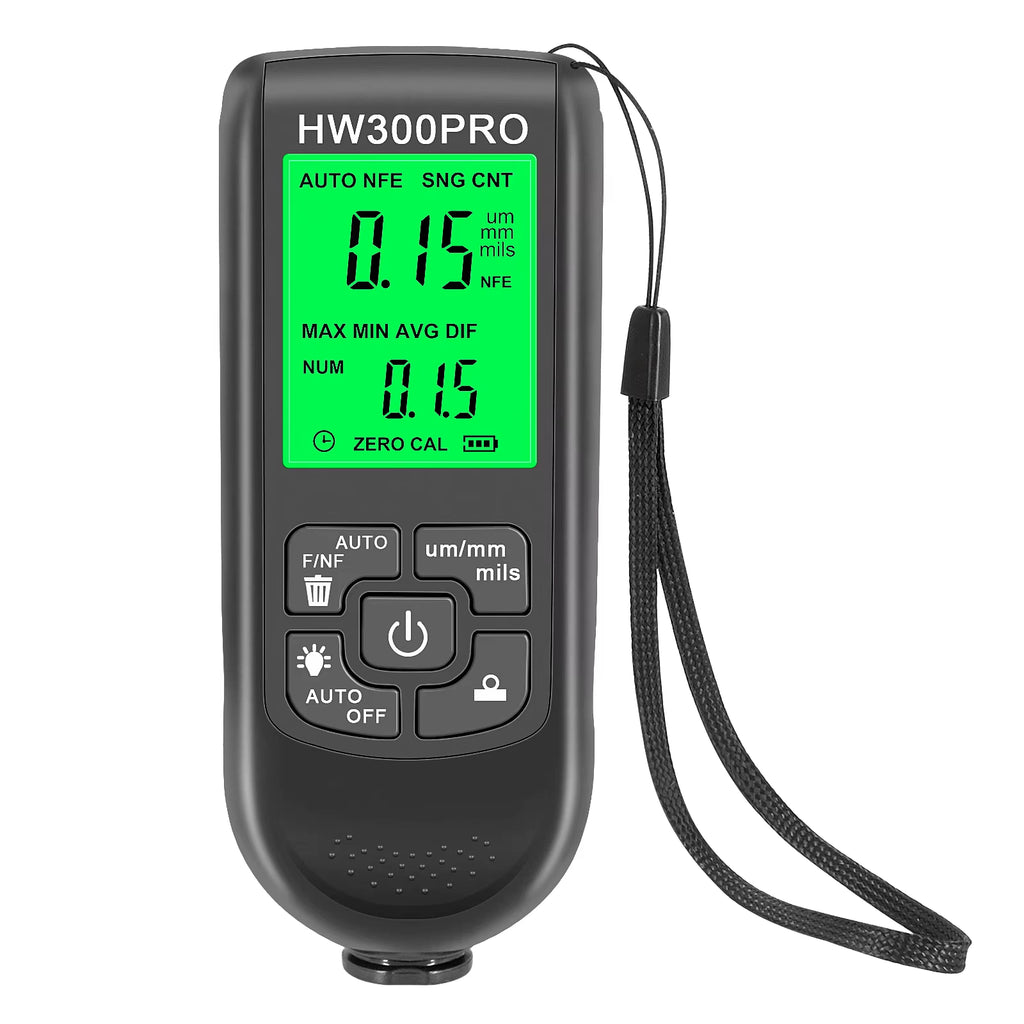

HW300PRO
Dimensions: 122MM*50MM*22MM
Accessories: thickness gauge 1PCS+ instruction manual+calibration sheet
Product name: HW-300PRO coating thickness gauge
Description:
Thickness gauge is used to measure the thickness of metal plating and coating, such as paint/enamel/chromium on steel, paint on aluminum/copper and anodized coating. Automatically detect the properties of the substrate.
Material: ABS
Ultra-precision resolution 1um, FE/NFE coating measurement, automobile paint 0-2000um.
Battery power indication
Automatic shutdown function
Used for FE/NFE
Measuring range: 0-2000UM
Measurement accuracy: (3%+1um)
Power supply: 2 1.5V AAA batteries (shipped without batteries)

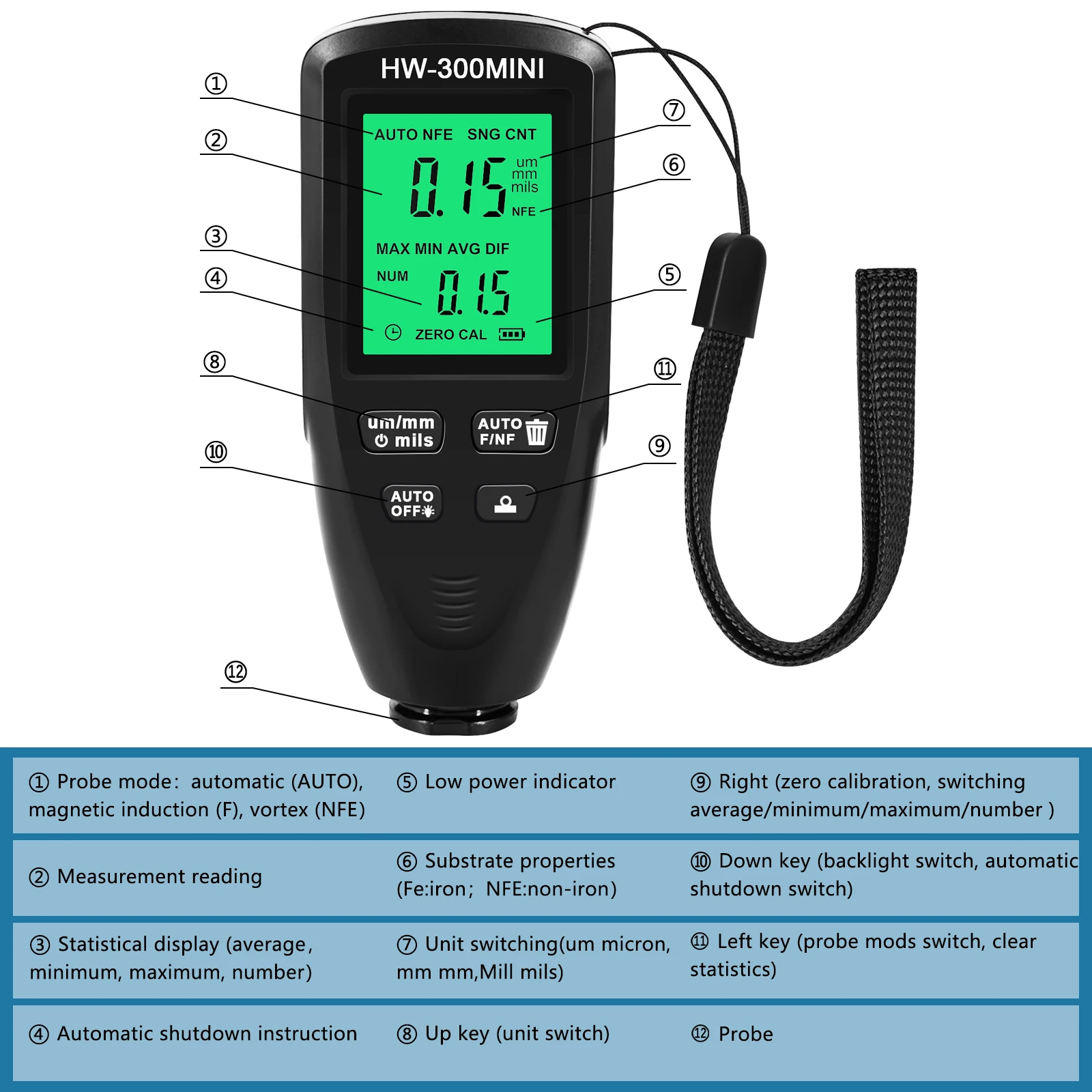

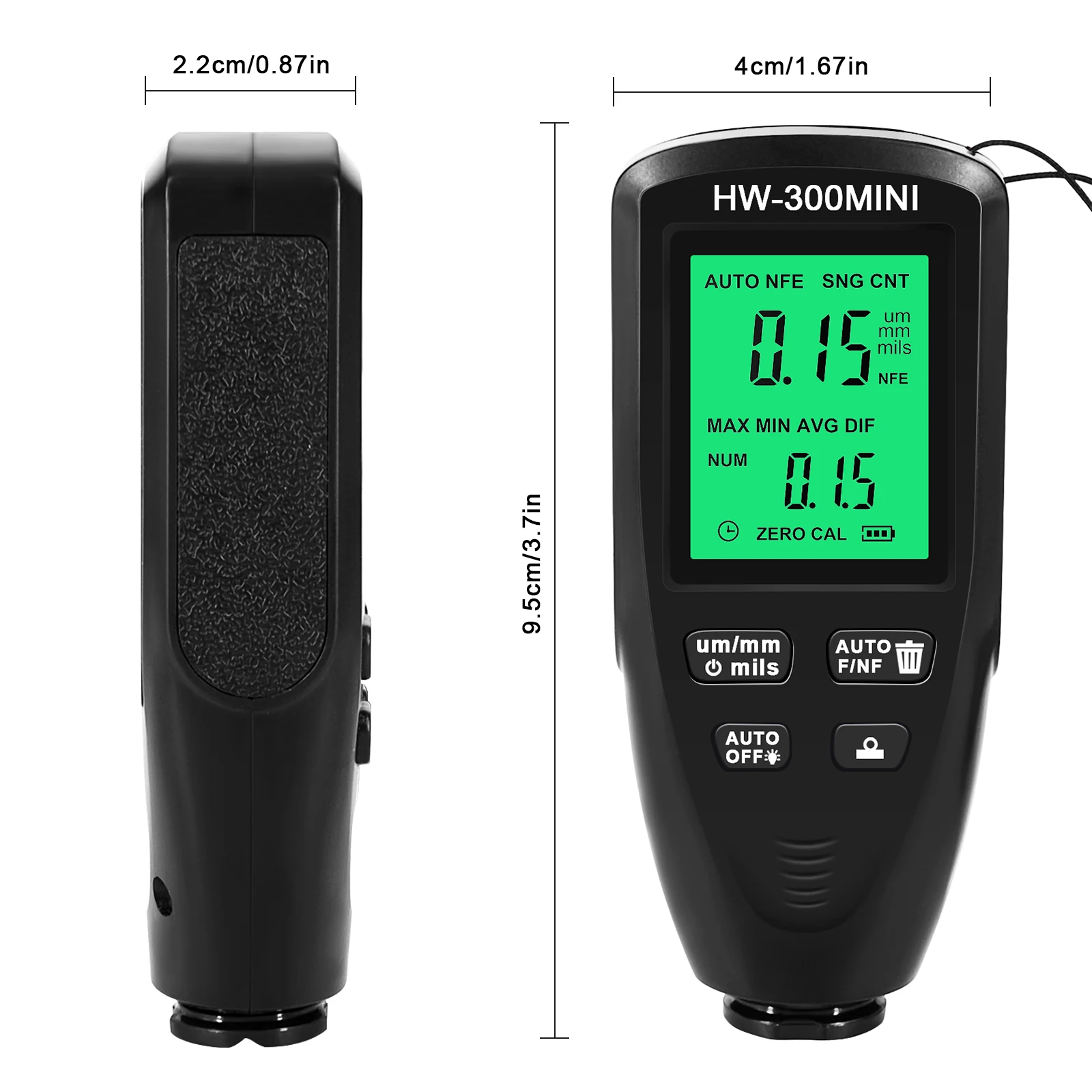

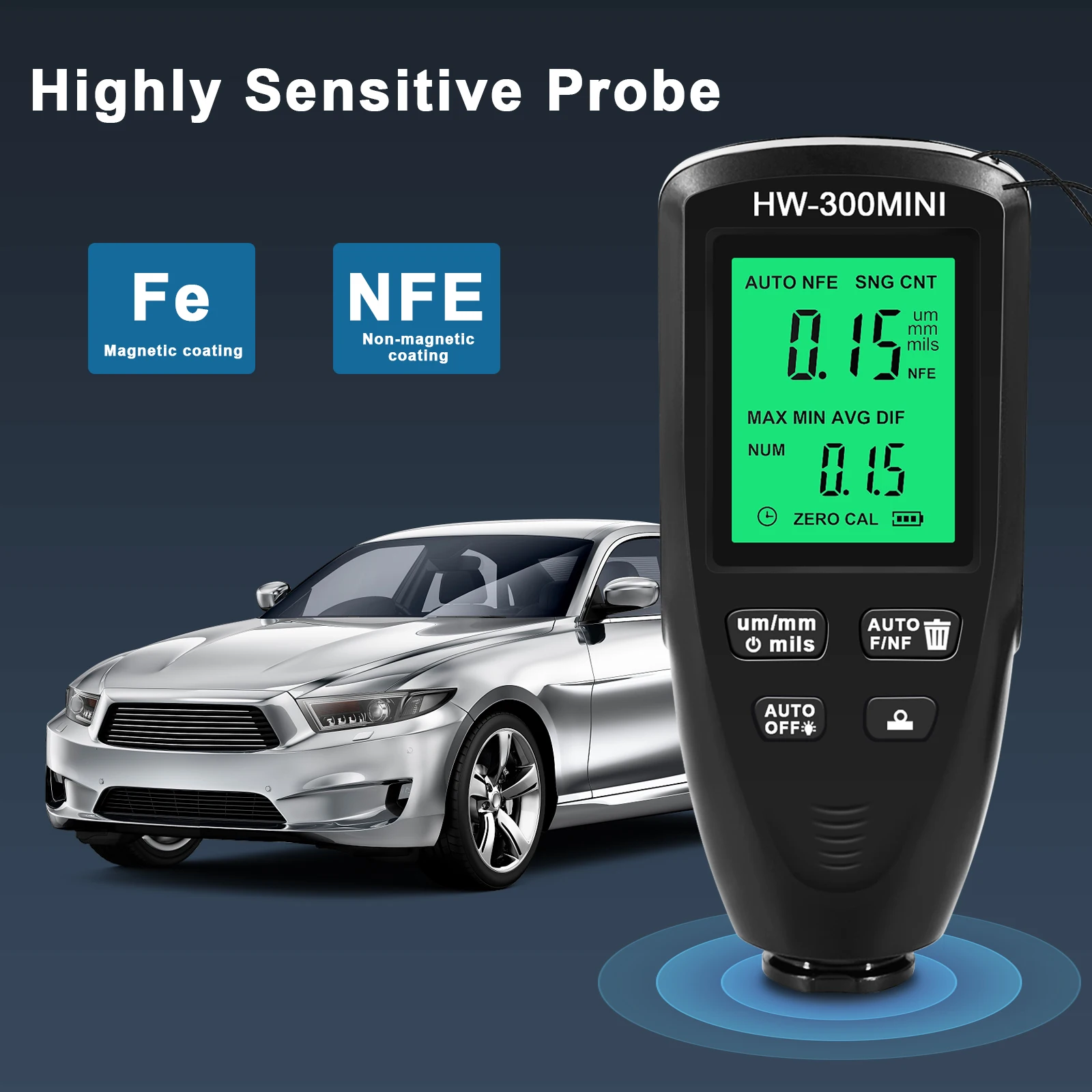

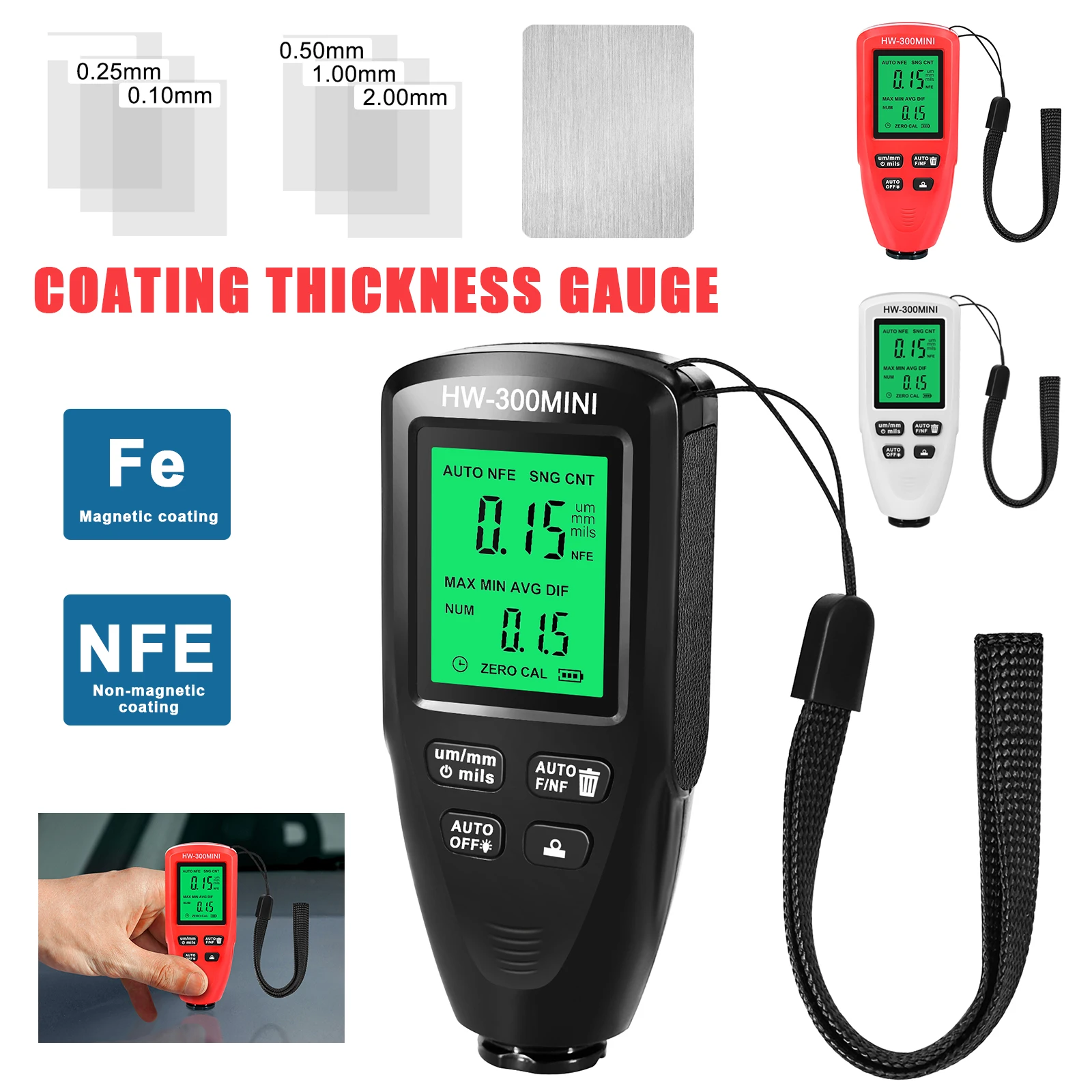

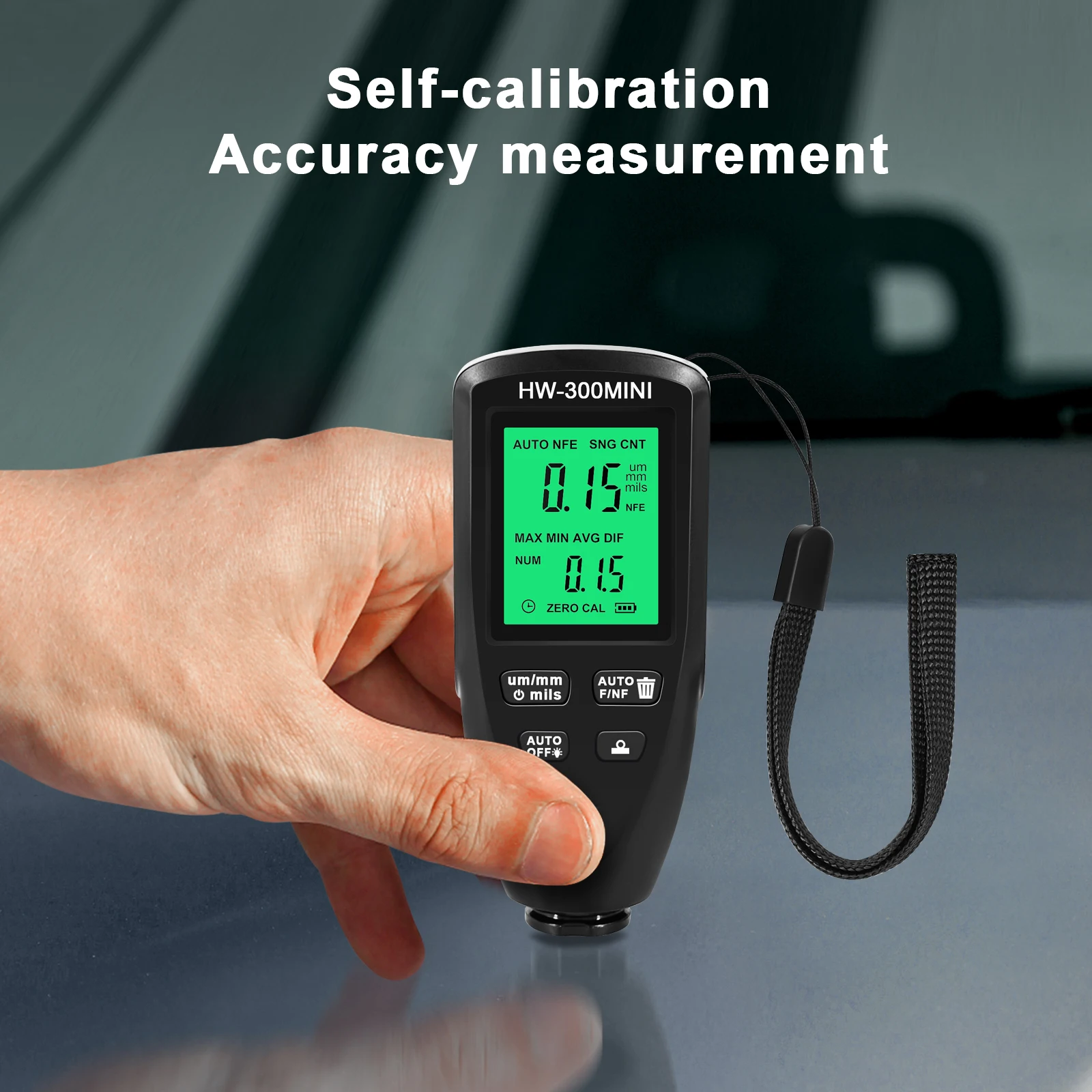

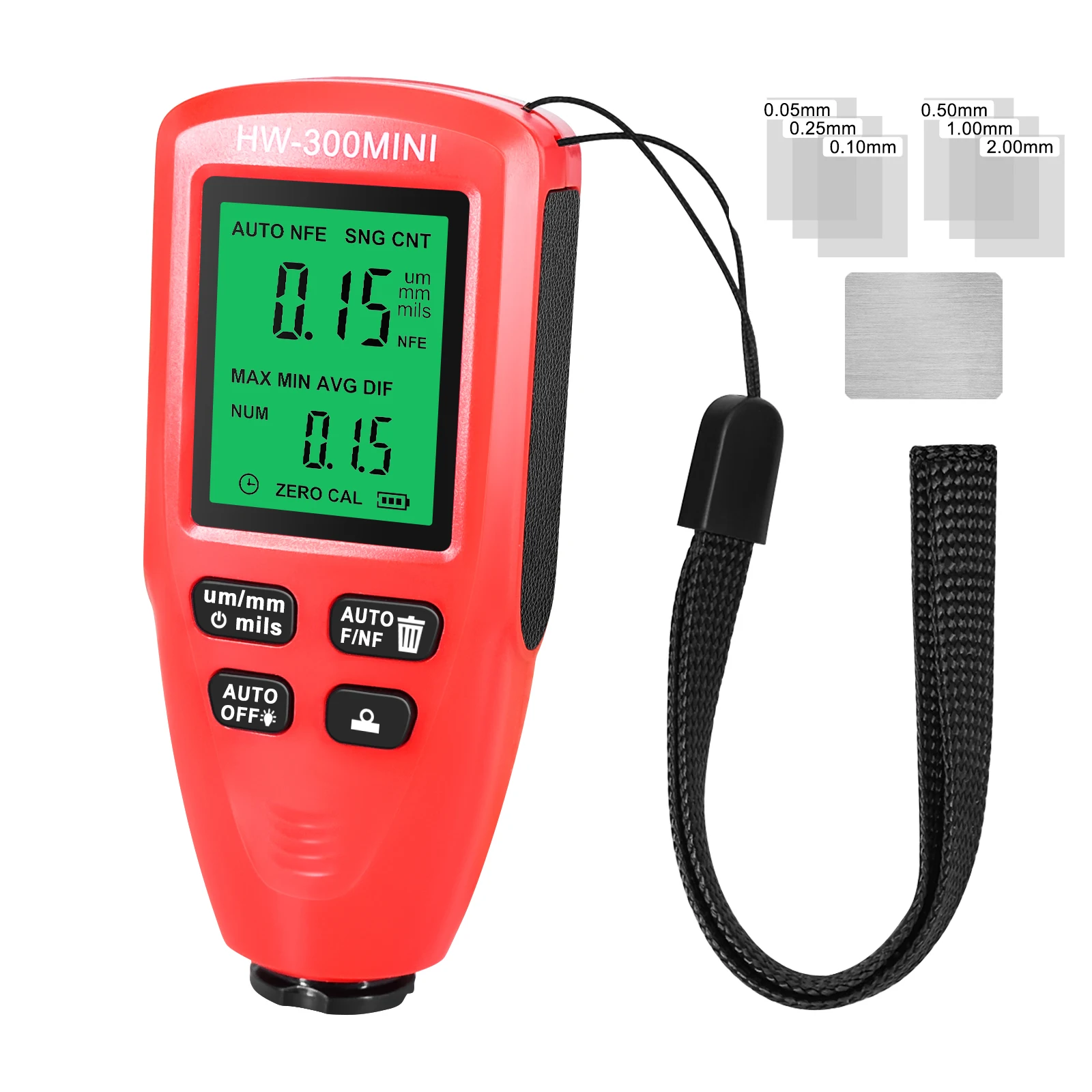

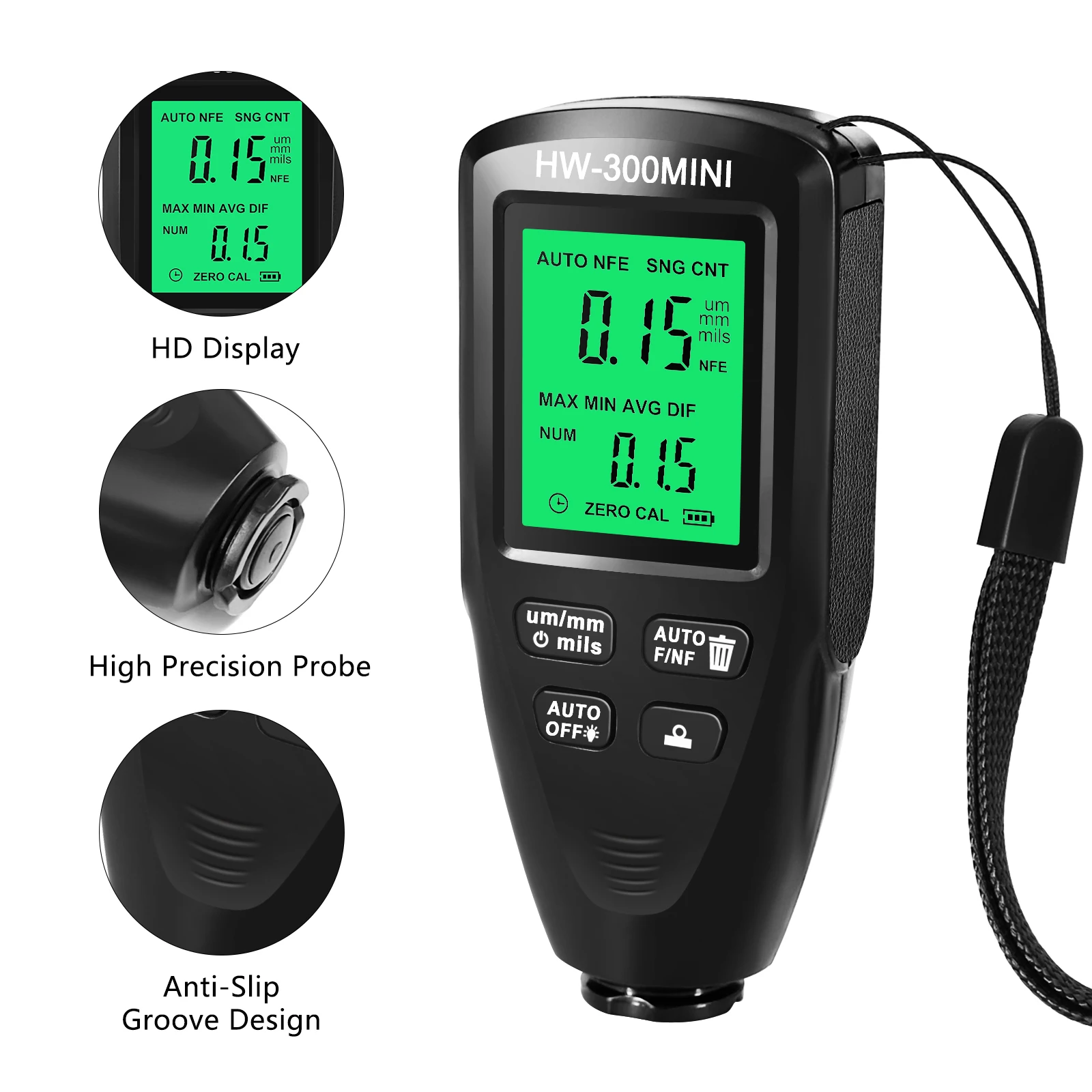

HW300MINI
1. Thickness gauges are used to measure the thickness of metal coatings and coatings, such as paint/enamel/chrome on steel, aluminum/copper paint and anodized coatings. Automatically detects properties of the substrate.

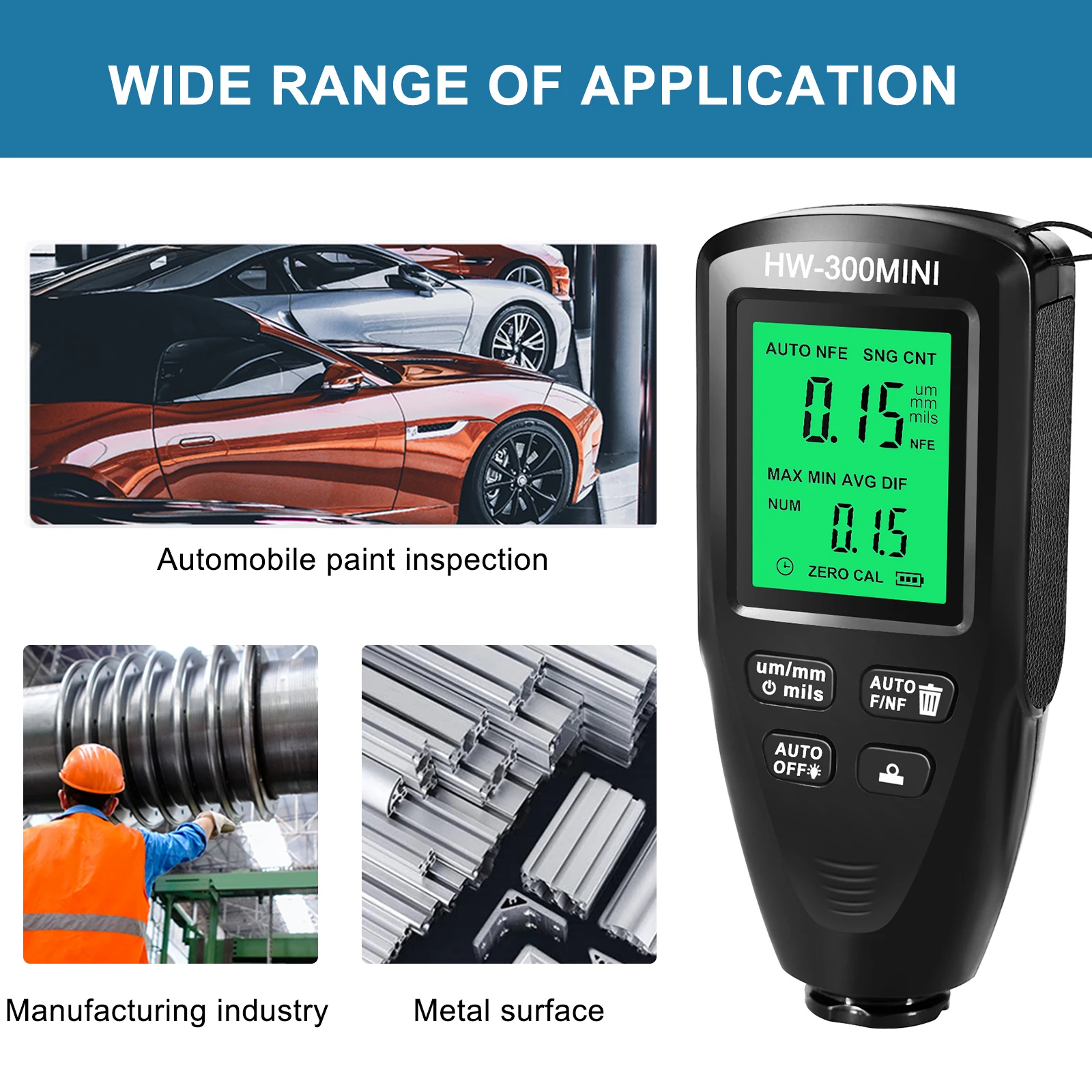

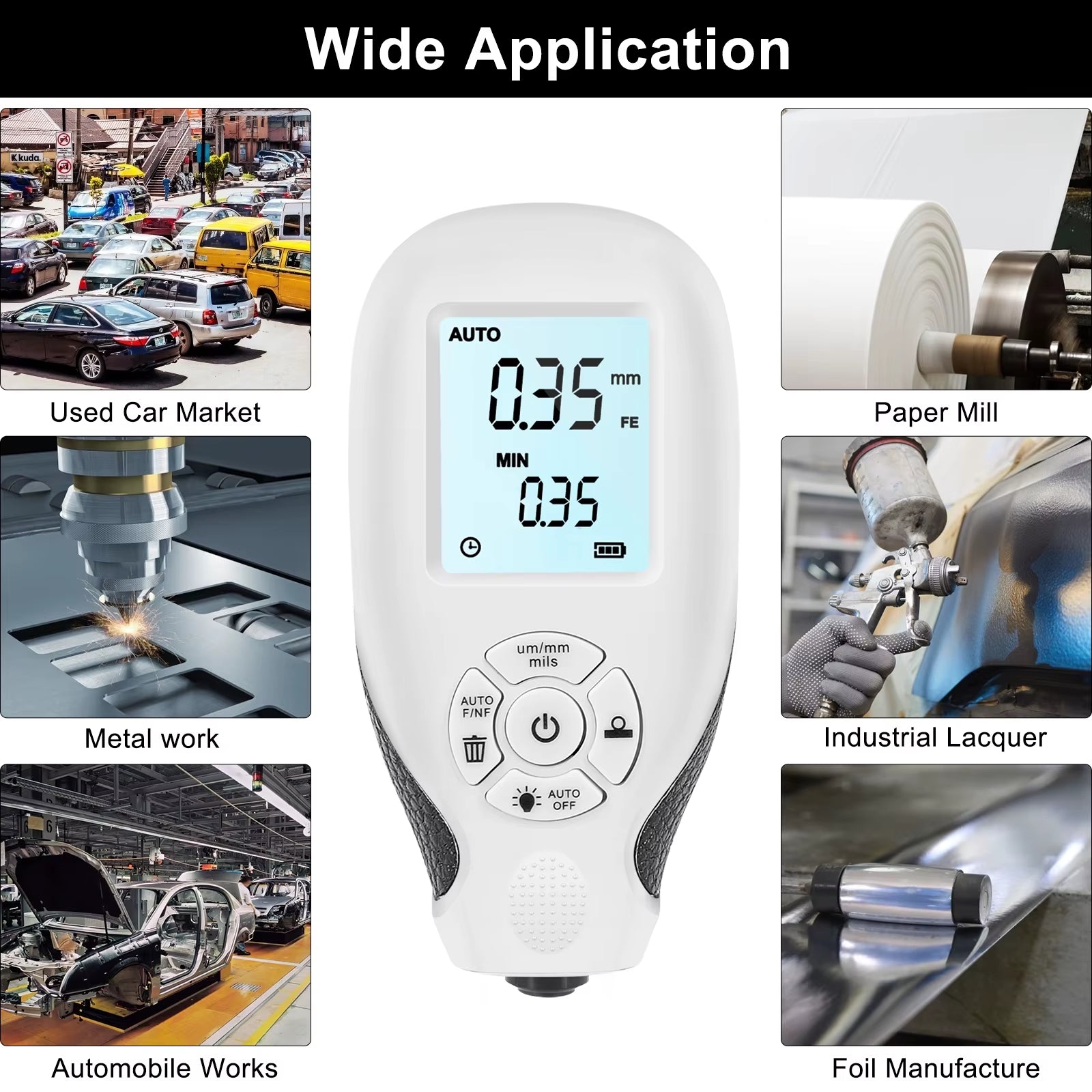

2. The instrument is used for nondestructive measurement of coating and paint thickness. It is the necessary equipment for material surface treatment, widely used in manufacturing, metal processing industry, chemical industry, commodity inspection and other fields, but also in the laboratory, workshop and outdoor stable work.
- Feature -
Role: Ultra precision resolution 1um, FE/NFE coating measurement, automotive paint 0-2000um
Material: ABS
Size: 95*40*22MM
Measuring range: 0-2000UM
Measurement accuracy: ± (3%+1UM)
Power Supply: 2 1.5V AAA batteries (not included)
Service temperature: -10 ℃ -50 ℃

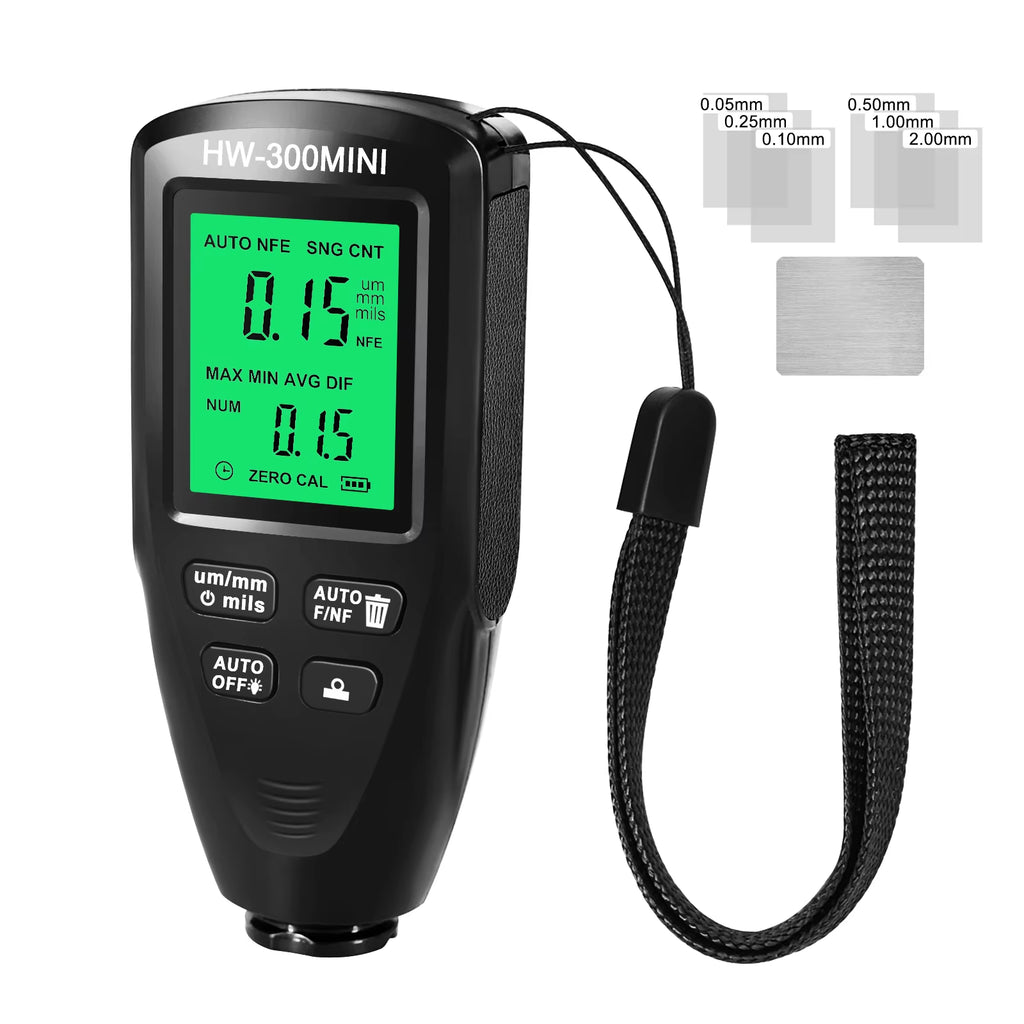

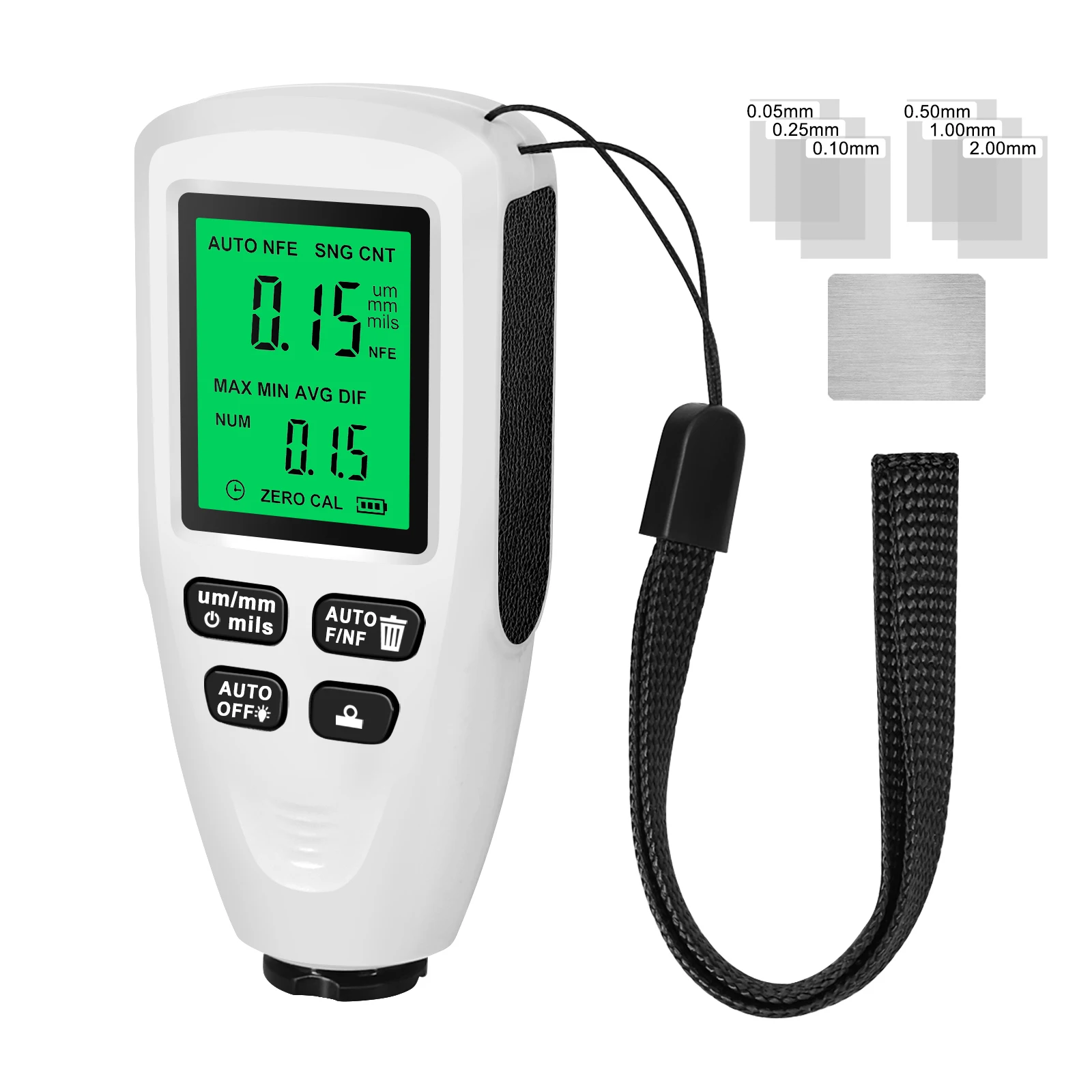

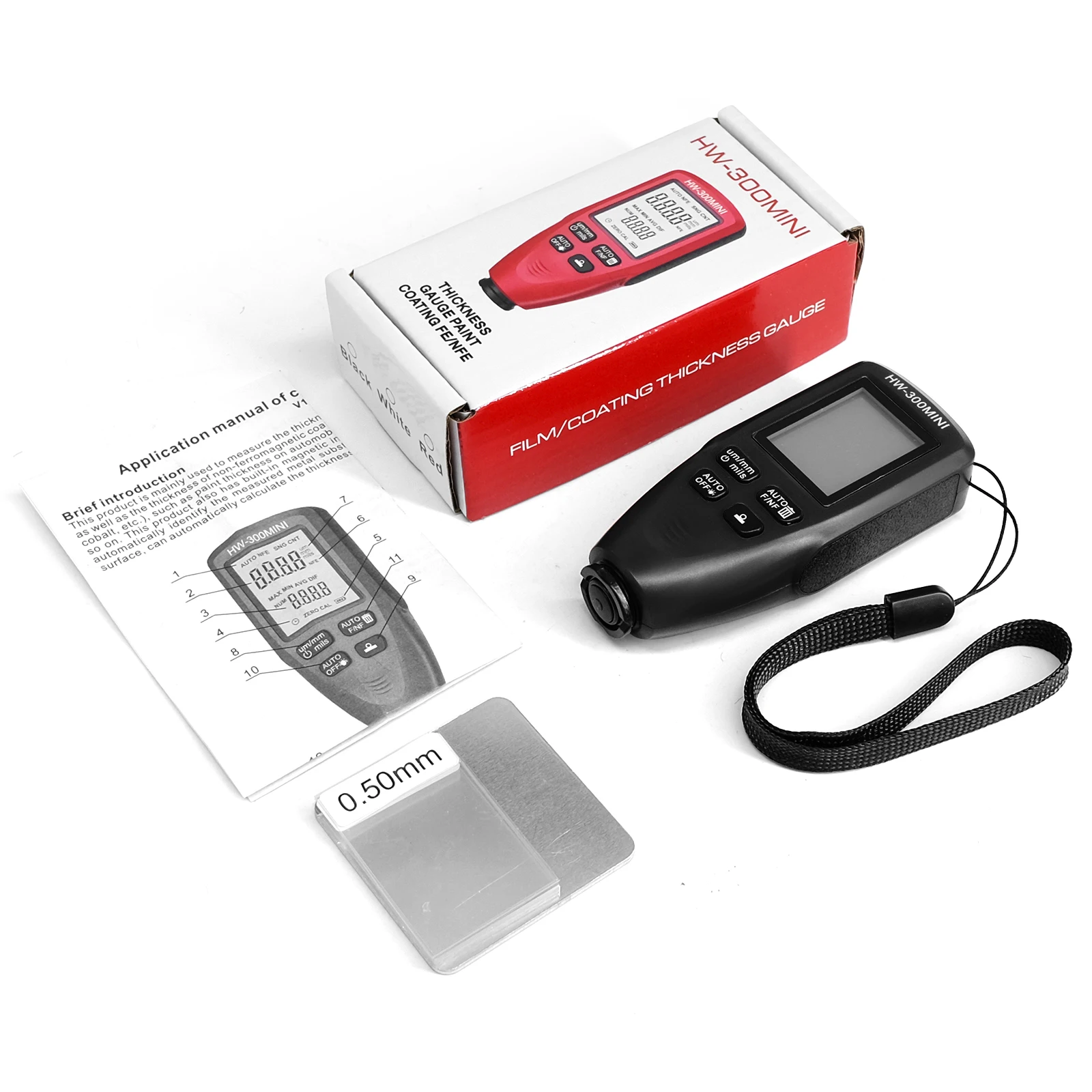

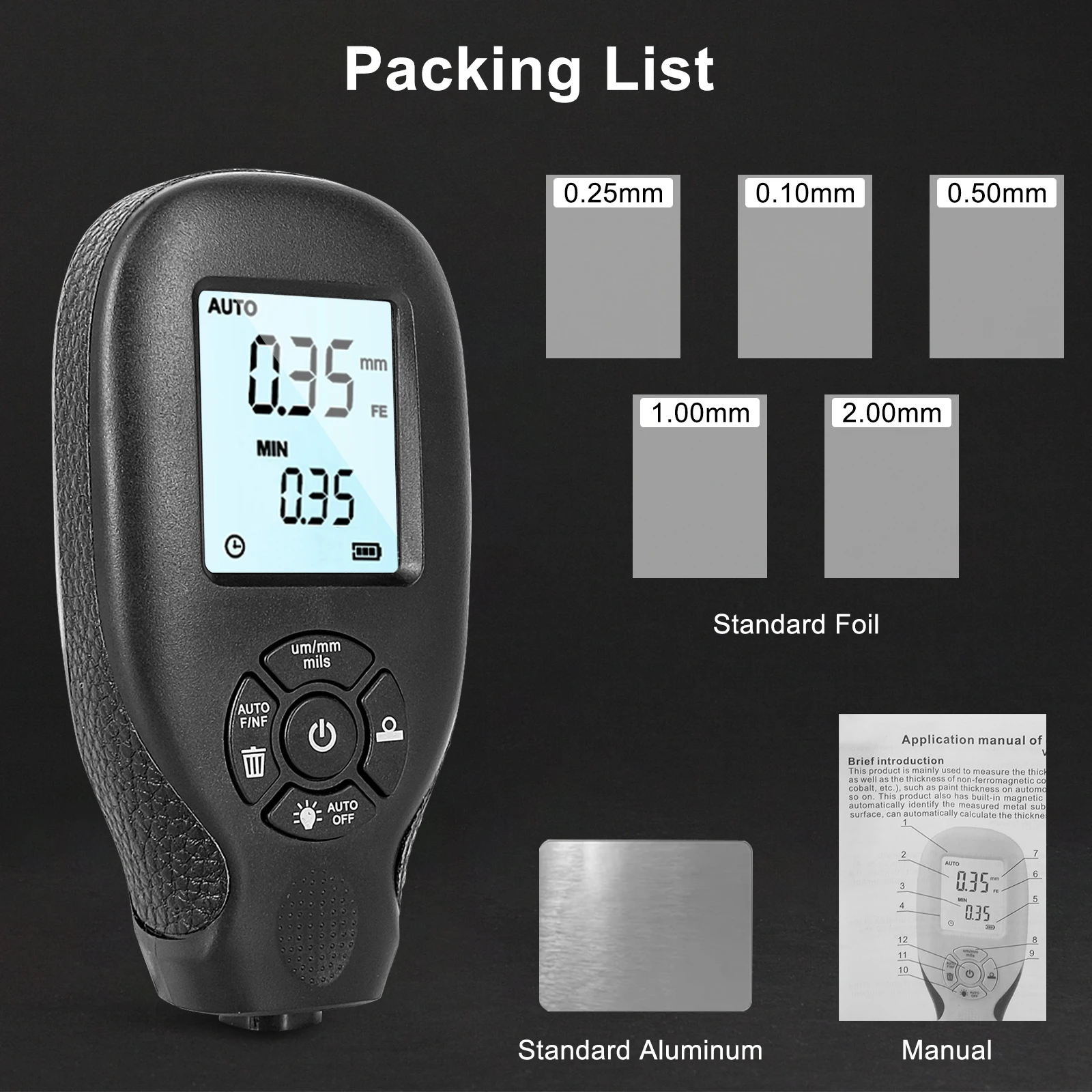

-Package Includes-
Thickness measuring instrument 1PCS
Use manual

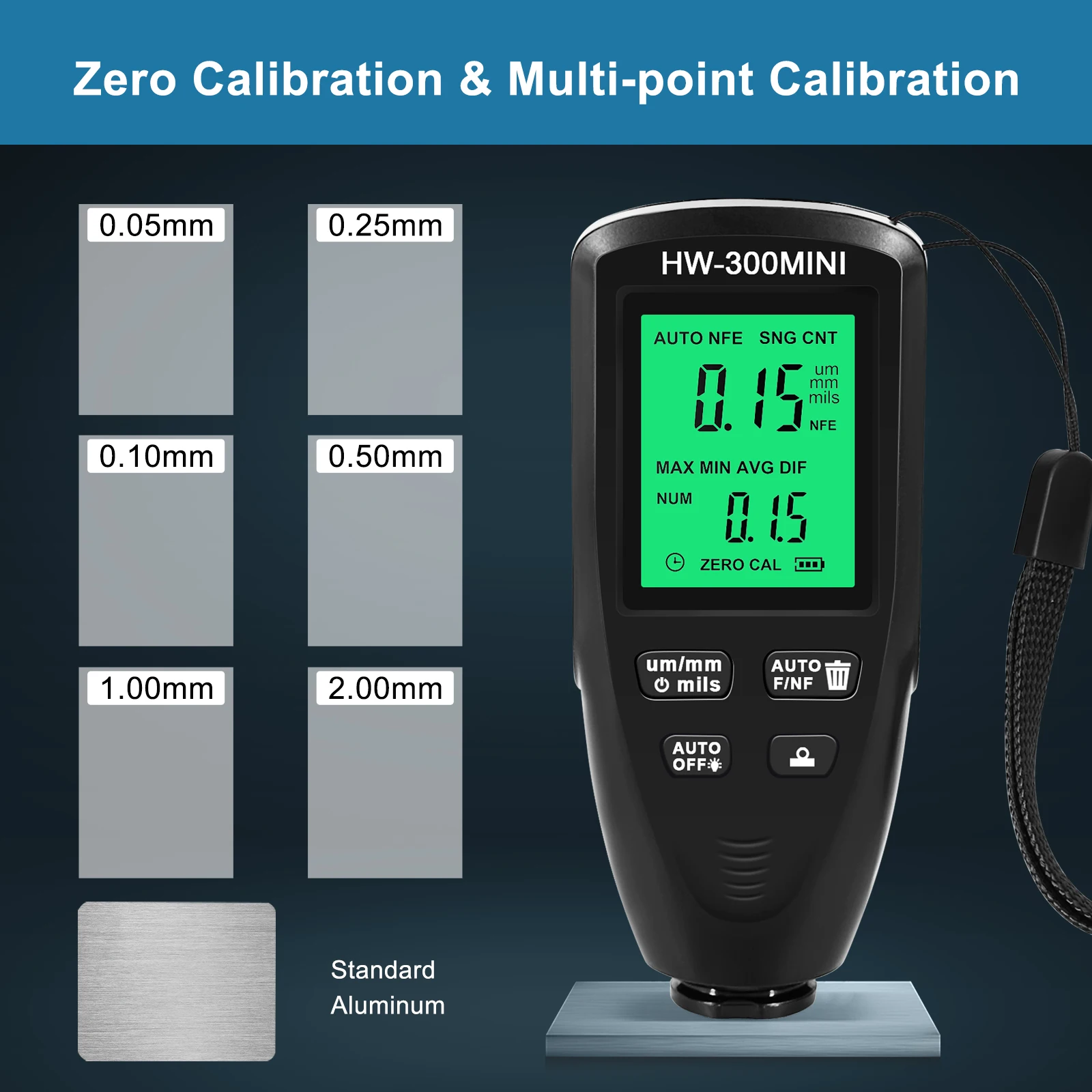

Calibration plate
Box packing
